ENGLISHProduct Overview

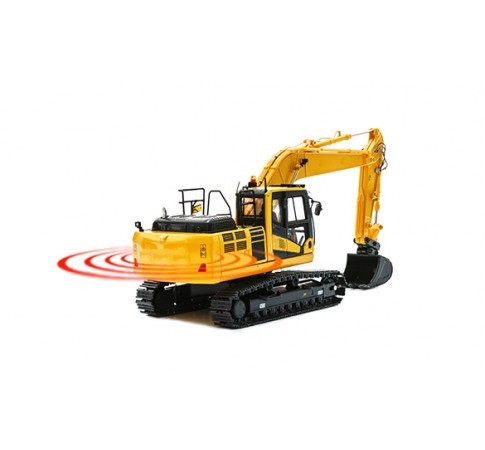

It is a product that warns the driver by detecting obstacles that are not visible in the blind spot caused by narrow view in the driver's seat.
Product Specifications
| ITEM | SGB500 |
|---|---|
| Working Voltage | 12V,24V(+7V~ +40V) |
| Power consumption | 100W MAX(max.3.5A) |
| Operating temperature | -30˚~+70˚ |
| Sensing distance | 30cm ~ 6M(basic) (~1m OPTION) |
| Channel used | Basic 2CH, (option3~6cH) |
| Distance & Alarm display | option ( 2~4LAMP RED LAMP Indicator)&Alarm display |
| Audio Output | 50W |
| Speaker | 20W(50W/75W),8oHm |
| Size(H*W*D) | 75*150*200mm |
| Wireless Remocon | 50m max.(option) |
| Gps . | 5Km/h ~20km/h ( option) |
| Sensor Length | 4m(8/10m option) |
| MIC | C- MIC (ON/OFF, option) |
Download
| Classification | File | Last modified date |
|---|---|---|
| Product Specification | 0000-00-00 | |
| Manual | 0000-00-00 | |
| CAD | 0000-00-00 | |
| Test report | 0000-00-00 | |
| Product certificate | 0000-00-00 |
