제품소개


에이블텍은 차량 및 산업의 안전을 위한
센서와 경보기를 직접 개발하고 제조·공급하고 있습니다.

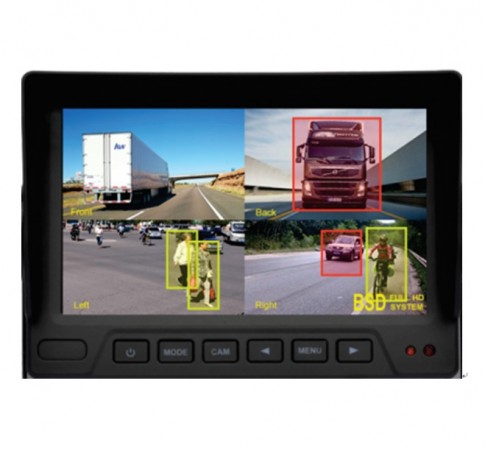

AIC 인공지능 인체감지시스템 AI 카메라 음성경보SD카드영상저장기능

  • 상품간략정보 및 구매기능


    설치 차량 트럭,버스,특장차,승합,승용차
    연결선 무선
    인증 KC
    사용전압 12V / 24V 겸용
    화소 200만화소
    화각 155도
    방수 I

    제품개요

    AbleTech rear cameraprovides clear picture quality for the driver to ensure visibility and complete monitoring of the surrounding when driving a vehicle. The strong durability guarantees a stable rear image even in roughoutside work environments.


    To become one of technology leaders in wireless rear camera industry, Abletech developed a product with following feature.


    The RCS4000 Rear Camera boasts brighter colorscompared to other competing products, and it is resistant to corrosion becauseit is made of zinc. Therefore, it can be used for a long time without being influenced by external environment.


    When installed in the camper trailer in white color, it is also nice to look at.


    · Screen resolution: produce bright screen with high resolution of 52,000 pixels

    · Viewing angle: features excellent viewing angle of 155 degrees.

    · Enclosure material: boasts long life of more than 10 years because it is made of zinc material which offers strong resistance to corrosion.

    · orean Product: Abletech, who have acquired the patented technology, supplies the product after producing in Korea.

    제품사양

    ITEM RCS 4000
    Image Sensor 1/3” SONY & SHARP SUPER CCD, [ High Sensitivity ] 52K Pixels ( Opt. 41k/27k )
    Effective Pixel [ H ] 510 x [ V ] 492 [ NTSC ] / [ H ] 500 x [ V ] 582 [ PAL ]
    Scanning System 2:1 Interlacing / 525 Lines [ NTSC ], 625 Lines [ PAL ]
    Sync. System Internal Sync
    Scanning Frequency NTSC : [ H ] 15.734 KHz x [ V ] 59.94 Hz
    PAL : [ H ] 15.625 KHz x [ V ] 50 Hz
    Horizontal Resolution More Than 380 TV Lines
    Video Output VBS 1.0 Vp-p ± 10% / 75Ω
    S/N Ratio 50 dB Min [ ACC off, Y signal ]
    Min. Illumination 0.1 Lux at F 2.0 AGC ON
    Lens f-2.9mm, View 155˚ [ Dia. ] ( Opt. 120˚ )
    Gain Control Autormalic Gain Control
    Gamma 0.45
    Shutter Speed Electronic Auto Iris
    1/50 ~ 1/100,000 : PAL/1/60 ~ 1/100,000 : NTSC
    Input Voltage DC 9V - 30V [ DC 12V, 150mA MAX ]
    Ambient Temperature - 20˚C ~ 70˚C, 85% RH
    Mirror ON / OFF
    BLC YES
    IR LED 850nm IR LEDs 5EA / CDS Sensor 1EA
    Night View Distance Outdoor 15m ~
    MIC 44dB( Opt. )
    Housing Color Black, Silver
    Connector S-Pin Din, 5.5mm Dc Jack, RCA(m)
    Weight Approx, 474g
    IP Resistance Certified IP 67 Level
    Approval CE, FCC, e-mark
